Skip to main content

Research Repository

Advanced Search

Thermally dynamic examination of local order in nanocrystalline hydroxyapatite

Arnold, Emily L.; Gosling, Sarah; Davies, Samantha K.; Cross, Hannah L.; Evans, Paul; Keeble, Dean S.; Greenwood, Charlene; Rogers, Keith D.

Thermally dynamic examination of local order in nanocrystalline hydroxyapatite Thumbnail


Emily L. Arnold

Samantha K. Davies

Hannah L. Cross

Paul Evans

Dean S. Keeble

Keith D. Rogers

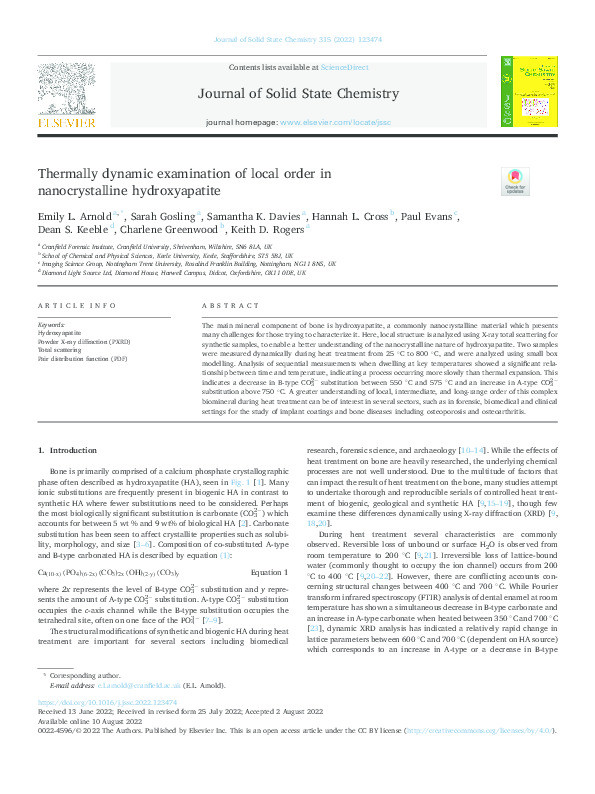

The main mineral component of bone is hydroxyapatite, a commonly nanocrystalline material which presents many challenges for those trying to characterize it. Here, local structure is analyzed using X-ray total scattering for synthetic samples, to enable a better understanding of the nanocrystalline nature of hydroxyapatite. Two samples were measured dynamically during heat treatment from 25 ?°C to 800 ?°C, and were analyzed using small box modelling. Analysis of sequential measurements when dwelling at key temperatures showed a significant relationship between time and temperature, indicating a process occurring more slowly than thermal expansion. This indicates a decrease in B-type CO32- substitution between 550 ?°C and 575 ?°C and an increase in A-type CO32- substitution above 750 ?°C. A greater understanding of local, intermediate, and long-range order of this complex biomineral during heat treatment can be of interest in several sectors, such as in forensic, biomedical and clinical settings for the study of implant coatings and bone diseases including osteoporosis and osteoarthritis.


Arnold, E. L., Gosling, S., Davies, S. K., Cross, H. L., Evans, P., Keeble, D. S., …Rogers, K. D. (2022). Thermally dynamic examination of local order in nanocrystalline hydroxyapatite. Journal of Solid State Chemistry, 315, Article 123474.

Journal Article Type Article
Acceptance Date Aug 2, 2022
Online Publication Date Aug 10, 2022
Publication Date 2022-11
Publicly Available Date May 30, 2023
Journal Journal of Solid State Chemistry
Print ISSN 0022-4596
Publisher Elsevier
Peer Reviewed Peer Reviewed
Volume 315
Article Number 123474
Publisher URL


You might also like

Downloadable Citations
